How to Measure Your Attic

Once you decide which install method is best for your home, it’s time to measure the attic space.

There are two good methods for getting the measurements you need: measure the space or estimate based on square footage and slope.

Choose Your Install Method First

Laying the foil on top of the attic floor? Stapling the foil up on the attic rafters/trusses? Depending on your install method, there are a couple of ways to measure your space to see how much AtticFoil™ you need.

If you’re laying the foil down on top of existing attic insulation (on the attic floor) then you just need to know the square footage of the attic area you’re covering. You determine this by multiplying the LENGTH x WIDTH of the space. For example, if you attic floor area is 30′ x 50′ then you’re measuring 1,500 sq ft. Check out our *NEW* SuperPerf™ AtticFoil™ that was designed for laying on the attic floor in cold climates.

If you’re stapling the AtticFoil™ up along the roofline, then you have two choices: measure or estimate.

Measure. This is the best method if you can easily walk on the roof and measure the different slope or surfaces of the roof. Just multiple the Length x Width for each roof slope, add them up and order the amount of foil needed. Another method is to count the sheets of plywood / decking on the roof from inside the attic. Each full piece of plywood is 32 square ft. Count how many sheets of roof decking and multiply by 32.

Estimate. If you can’t measure the roof, then the next best method is to estimate the roof surface area. The key to this method is to determine the “footprint” of the attic. Once the footprint is determined, then you will multiply this number by a Pitch Factor between 1.2 – 1.5 depending on the pitch or steepness of the roof.

Calculating the Attic Area

Single Story Homes

Typically the square footage of the home plus 400 ft for a 2 car garage (and add any additional square footage of porches). For example:

1700 sq ft home + 400 sq ft for a 2 car garage + a 100 sq ft porch = 2,200 sq ft total

Two (or Multi) Story Homes

Determining the footprint of the attic is the way to go for measuring. If your home is a perfect two story, with the second floor perfectly over the first floor, you can usually measure the foundation of the home to get the approximate total of the attic. For example: If the foundation measured 50′ x 30′, the foundation and footprint of the attic will be:

50 x 30 = 1,500 sq ft total

For homes that are all cut up with lots of slopes, valleys and dormers it can get tricky. If you can determine how many sq ft are on the first floor, this is a pretty close measure of the footprint of the attic; don’t forget to add in the garage and porches, since those areas can benefit from radiant barrier too.

Pitch Factor

Once you determine the footprint of the attic, you will need to estimate the pitch (or slope) factor if you are stapling the foil up. Otherwise, if you are going to lay the foil over the insulation, then the footprint number is the quantity you will need.

How to Multiply

Pitch Factor Guide

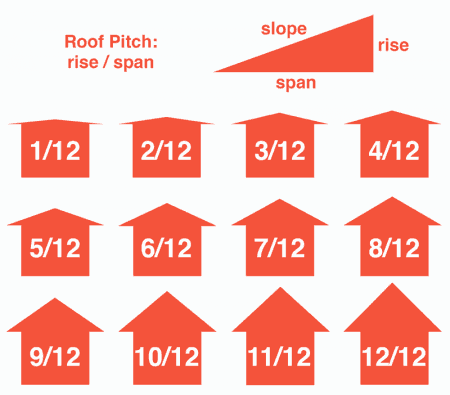

The roof pitch or roof slope is usually shown as a ratio to 12 (i.e., 1:12, 4:12, 12:12, etc.). A 4:12 roof pitch means that the roof rises 4 inches in every 12 inches measured horizontally across the width of the building from the side to the peak of the building.

Multiply by 1.2 to 1.3: If your roof is under a 5/12 (i.e. easy to walk on and probably under 8′ at the highest point for most homes).


Multiply by 1.3 to 1.4: If your roof is a 6/12 thru 8/12 pitch (i.e. slightly difficult to walk up with a ridge usually over 8′ high).


Multiply by 1.4 to 1.5: If your roof is a 10/12 pitch or higher (i.e. very difficult/impossible to walk up, this is often considered a very steep or church-style roof).

Extra Areas to Consider

  • If you are using the FlatTop Installation method, you can reduce your number by a little since the area covered is a little less than the actual roof surface area.
  • If you have gable ends that catch sunlight, then add their square footage to your total amount.
  • If you have vaulted or cathedral ceilings that are inaccessible , subtract this area from your total.
  • If you have trusses that are 24″ OC in your attic, try the 26″ wide AtticFoil™ that can easily be installed vertically along the truss ends.
  • If you plan on covering over a garage area, a typical 2-car garage is around 400 square feet – add this to your total.


    Remember, using these guides for guesstimating is not an exact science. You can always order a single roll to finish up a job or you can easily sell a left-over or partial roll to a neighbor, on Craigslist or donate it to Habitat for Humanity.
